Angles & Curves

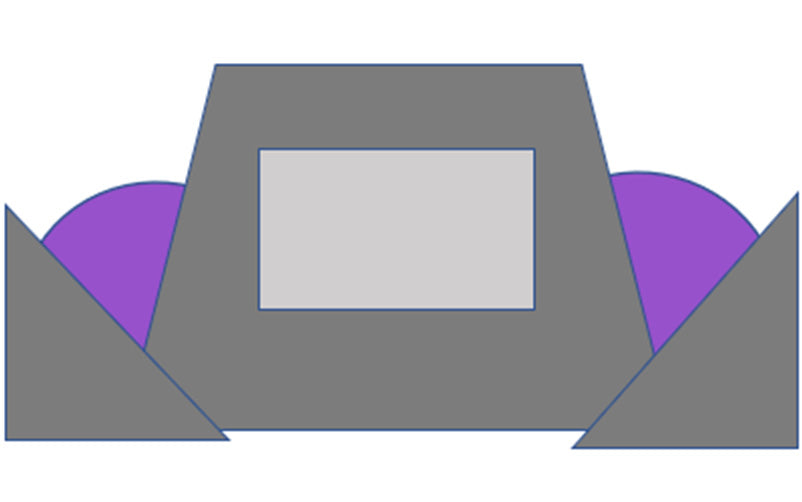

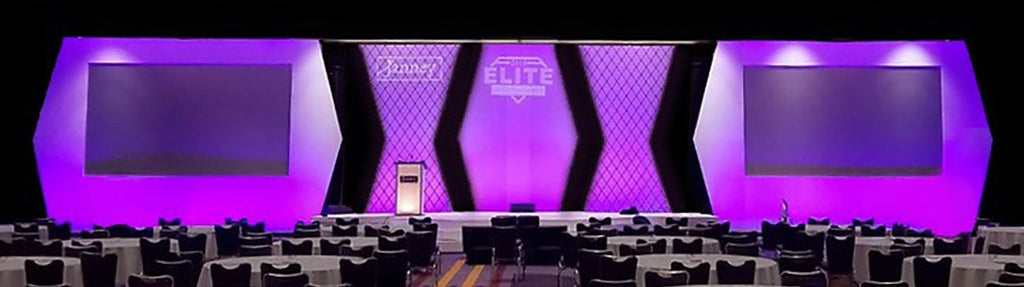

AV Drop’s design capabilities go well beyond rectangular and square panels. The standard frame collection, available in both imperial and metric, includes a number angles and radius corner frames which give scenic and event designers increased flexibility and options to create unique sets without building one-off custom fabricated components of wood or metal.
Our sewing and fabrication team can produce any solid or print skin to work with any angle or radius that you design with.
ANGLES

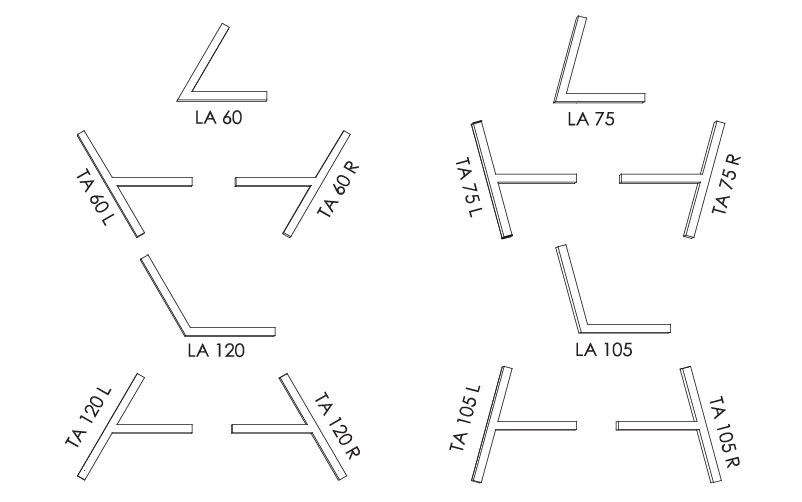

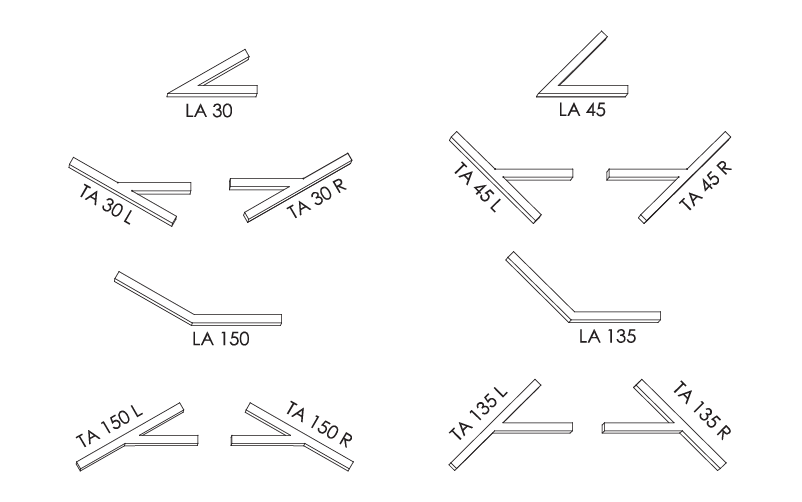

AV Drop currently has eight angle sets. Each angle set is made up of an angle with a corresponding left and right T angle to complete a 180°. angle. Each of the primary angles are 1’ in length on each side of the angle. The corresponding “T,” or center support angles, are 2’ on the outer perimeter side of the unit and the internal cross member 1’-6” in length. These standardized dimensions allow for easy reference when designing with the Angles.
RADIUSES

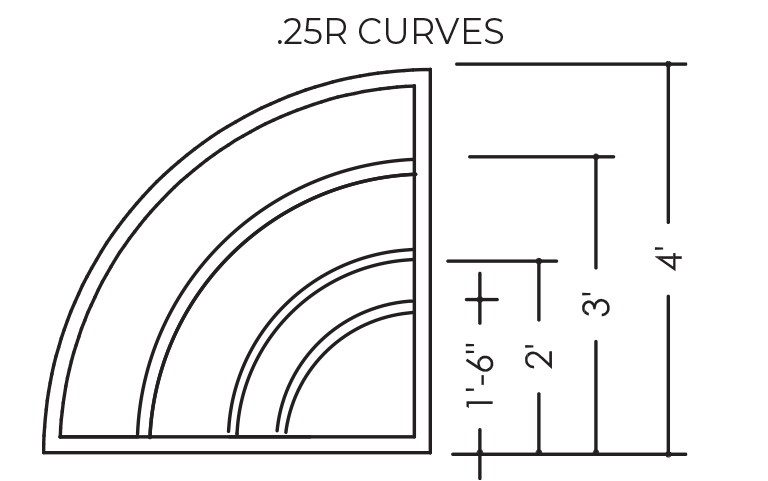

Our imperial radiuses are available ¼ round at 1.5’, 2’, 3’ and 4’wide diameter sections. The radiuses can be used to round a single corner or in multiples to make a half or full circle.
Not quite standard but considered stock, we have large circles up to 15’ available.
Our experienced sewing and fabrication team can produce any solid or print skin to work with any angle or radius that you design with.
The skin is what makes AV Drop a reality. The system's rigid but modular framework is wrapped with a skin, a flexible IFR textile fabric that is attached with hook and loop, to create a flat wall solution.
The perimeter of the rear side of every AV Drop frame is covered in Velcro Hook to catch the skin which has Velcro loop stitched on. The high-stretch memory allows for the skin to be pulled tight minimizing wrinkles and dimples.
Things to Consider
- Your choice of seamed or non-seamed depends on budget, aesthetic and your choice of fabric. Seamless is limited to specific fabric sizes & colors, as well as printing options.
- Enough space must be allotted for stabilizers (jacks) behind the set. The jack width varies with set height.
- All AV Drop walls are exact sizes. Dimensions cannot change onsite.
- Please confirm room height and obstructions prior to finalizing the design. We recommend a minimum of 1 foot between lowest ceiling point and AV Drop set.
- Typical AV Drop seams are tight
- Custom designs and large-scale jobs may be subject to additional fees for production coordination and planning.
AV Drop’s design team is always working on new components and continues to develop innovative products.
