Uprights
We offer a selection of slip-lock adjustable uprights that range from 2’-3’ to 14’-24’ high, as well as standard non-adjustable uprights, best suited for trade show booths and knee walls.
Because every room is different, we offer a complete selection of adjustable horizontal drape supports ranging from 2’-3’ to 9’-16’ wide. They are designed to meet any room size and will support your chosen drape. Once the hardware has been established, the drapes are selected for each horizontal section and sleeved on with ease.

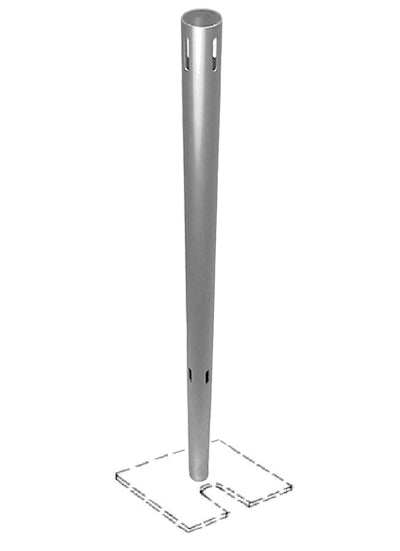

STANDARD UPRIGHT
When you need to create an intimate setting, cantilevers provide a simple, stylish option for any event space.
- Non-adjustable
- Equipped with 4 slots positioned every 90 degrees
- 8′ height had additional slots at 3′ high
- A chrome end cap standard on all 3′ uprights
- Other heights and extensions available
| HEIGHT | BASE | PIN | USES |
|---|---|---|---|
| 3' | B814 | 1.5″ x 3″ | dividing trade show booths, crowd control |
| 6' (sales only) | B1416 | 1.5″ x 3″ | |
| 8' | B1416 | 1.5″ x 3″ | standard upright |
| 10' (sales only) | B181838 | 2″ x 6″–8″ |

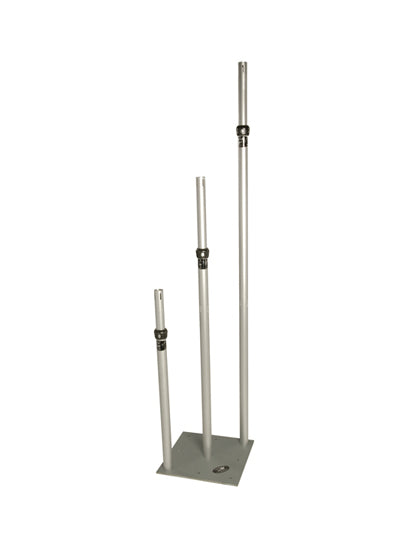

TELESCOPING UPRIGHT
- Unique slip-lock feature
- Easy set-up, adjust without tools
- Locks automatically when inner pole is raised or lowered
| HEIGHT | BASE | PIN | TYPE |
|---|---|---|---|
| 3′ – 5′ | B1818 | 2″ x 4″ | two-piece |
| 4′ – 7′ (sales only) | B1818 | 2″ x 4″ | two-piece |
| 5′ – 8′ | B1818 | 2″ x 4″ | two-piece |
| 6′ x 10′ (sales only) | B181838 | 2″ x 6″–8″ | two-piece |
| 7′ x 12′ | B181838 | 2″ x 6″–8″ | two-piece |
| 7′ x 17′ | B242438 | 2″ x 8″–16″ | three-piece |
| 8′ x 14′ | B181838 | 2″ x 6″–8″ | two-piece |
| 9′ x 16′ | B181838 | 2″ x 6″–8″ | two-piece |
| 9′ x 23′ (sales only) | B242438 | 2″ x 8″–16″ | three-piece |
| 12′ x 22′ | B242438 | 2″ x 8″–16″ | two-piece |
| 14′ x 26′ (sales only) | B242438 | 2″ x 8″–16″ | two-piece |

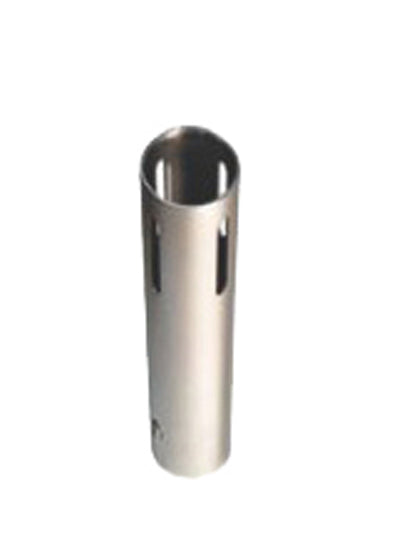

TOP OPTIONS STANDARD UPRIGHT END
- Chrome end cap standard on all 3’ uprights
- Equipped with four slots positioned every 90°
- 1 ½” outside diameter

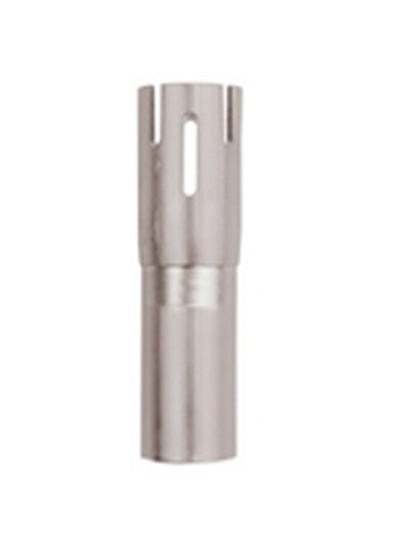

PLASTIC REINFORCED END
Replaces damaged ends of telescoping uprights
- Has eight (8) slots for added versatility
- Allows drape support to be mounted with flush top “no humps”
- Replacement height is 3″ Cut off damaged end and secure new one with rivet or screw

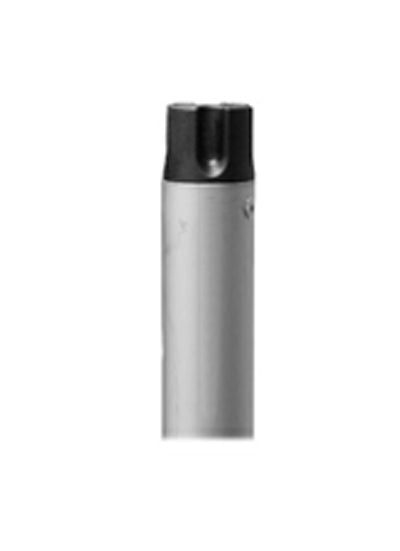

PIPE & BASE 2.0® CROWN
- New alternative to “hook and slot” pipe and drape: can be used to Retrofit existing hardware
- Robust engineered nylon fiberglass compound with steel make for a top ready for years of use
- Secure connection point for additional accessories
- Sockets are designed for use with a “ball” connection allowing for multitude of connection angles, saving time and effort, during set up and tear down
